Performance graphs for Laminova coolers
|

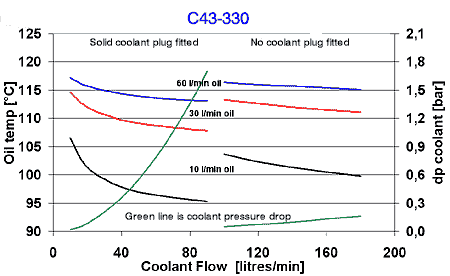

C43 series

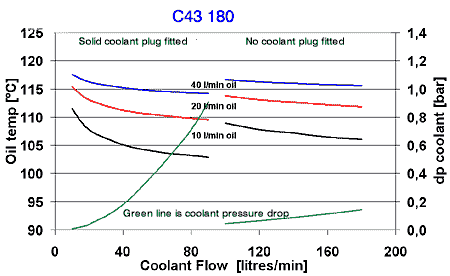

Oil Temperature in: 120oC. Water temperature in: 85oC

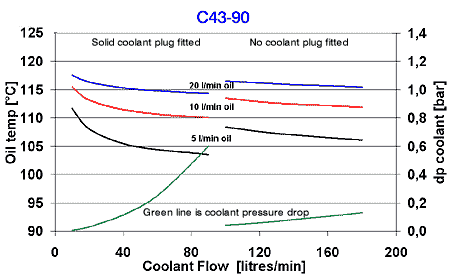

Oil Temperature in: 120oC. Water temperature in: 85oC
Oil Temperature in: 120oC. Water temperature in: 85oC

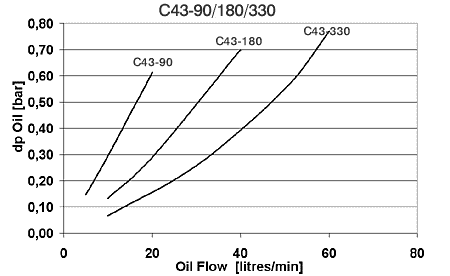

C43 Oil pressure drop

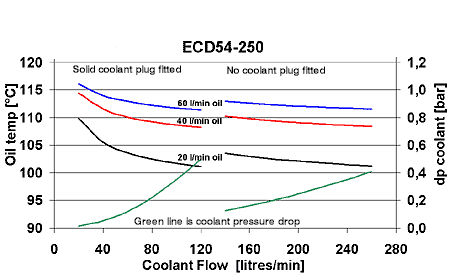

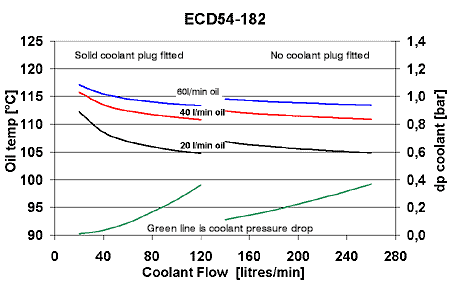

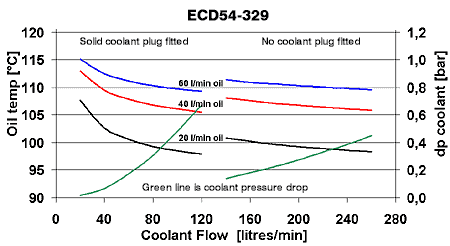

C54 series
Oil Temperature in: 120oC. Water temperature in: 85oC. Graphs are for twin core coolers.
Oil Temperature in: 120oC. Water temperature in: 85oC. Graphs are for twin core coolers.
Oil Temperature in: 120oC. Water temperature in: 85oC. Graphs are for twin core coolers.

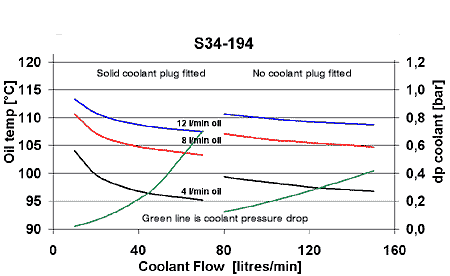

S34 cooler
Oil Temperature in: 120oC. Water temperature in: 85oC

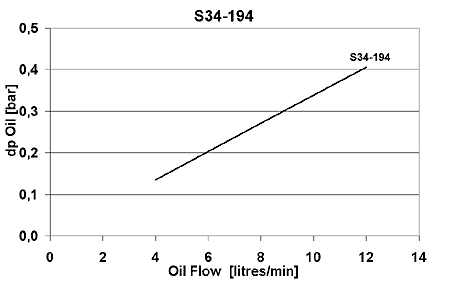

S34- Oil pressure drop

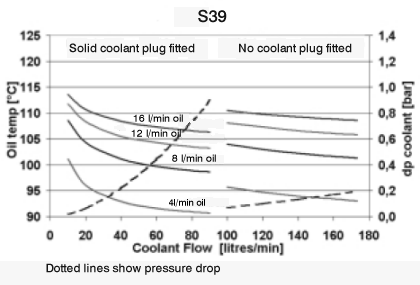

S39 cooler
Oil Temperature in: 120oC. Water temperature in: 85oC
