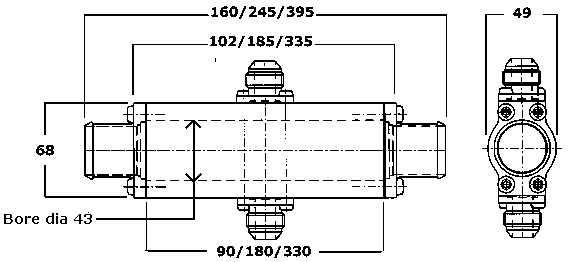

C43 series

Dimensions in millimetres, may vary, dependant on fittings, always check if critical.

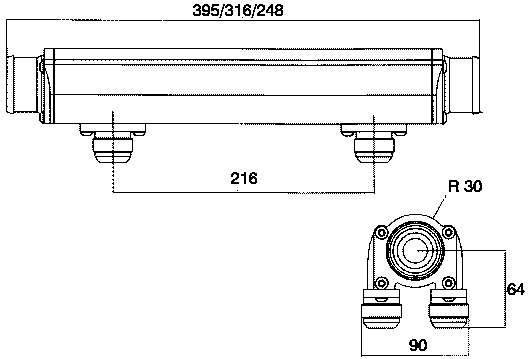

EC54 series

Dimensions in millimetres, may vary, dependant on fittings, always check if critical.

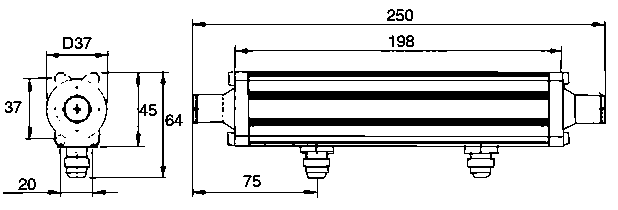

S34 cooler

Dimensions in millimetres, may vary, dependant on fittings, always check if critical.

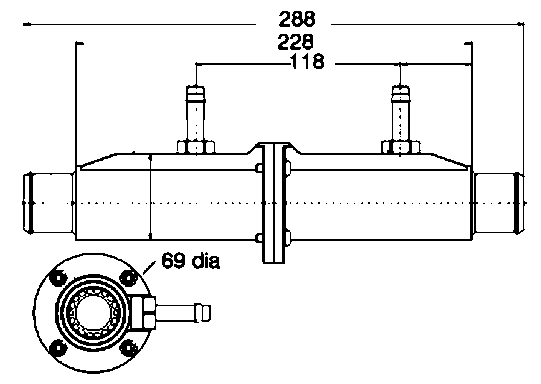

S39 cooler

Dimensions in millimetres, may vary, dependant on fittings, always check if critical.
