EOP1 electric gear pump

EOP1 electric gear pump

An electric gear pump available as 12 or 24 volt. Suitable for transmission/differential cooling or turbo oiling applications. Pump is both compact and durable which makes it a good candidate for longer runtime applications. The brass pump body with bronze gears is ideal for pumping a variety of viscosity oils. Pump is self priming, can be located up to 1.5 metres above fluid level. Motor body is sealed and meets IP-65 waterproof specification. Flow Rate 0.8-1.7 GPM and up to 50 psi. working pressure. Length 5.5" , weight 1.4 kg, current 12 volt 8 amp max.

Specifications:

Specifications:

flow 0.8-1.7 GPM / 50 psi max rating

150 Centigrade temp rating

self-priming* 1.5 metres (gears must be wet)

quiet low vibration operation

bronze pump body with brass rotor gears

sealed waterproof motor (meets IP-65 spec.)

stainless pump shaft w/Floroelastomer seal

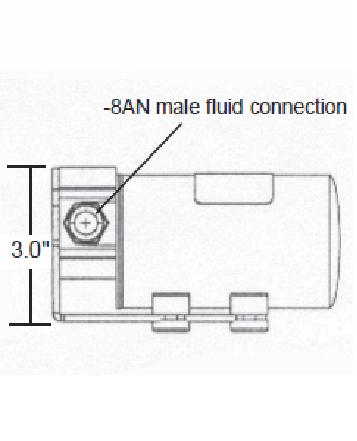

-8AN Male inlet/outlet

high temperature internal wiring

10" wiring lead

rubber-isolated mounting bracket and feet

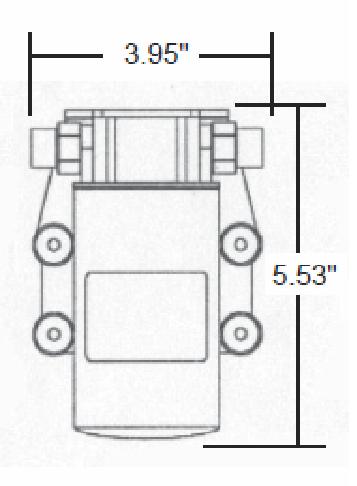

dimensions 5.5" x 3.9" x 3.0"

weight 1.4 kg.

12 volt DC, 6-9 amp nominal (10 amp fuse recommended).

24v version is available
